2’ x 2’ Backlit LED Panel Light

Ideal for:

• Office spaces
• Retail stores
• Schools
• Hospitals
• Commercial buildings
• Any location requiring uniform and energy-efficient lighting

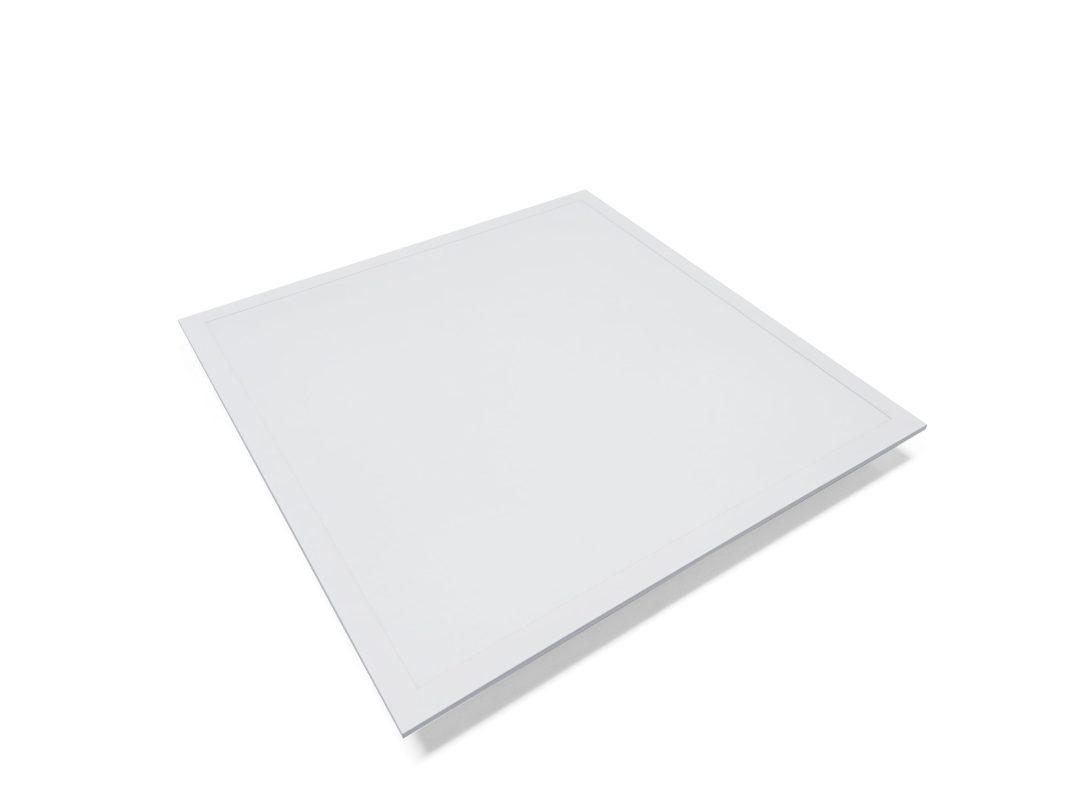

Design and Construction:

This 2×2 backlit LED light panel features a robust and durable frame with a matte white finish, providing a clean and professional aesthetic. Its slim profile design and integrated T-bar mounting clips ensure easy and seamless installation in various ceiling types.

Electrical Specifications:

• Equipped with a high-quality universal voltage driver (120-347V), ensuring compatibility with various electrical systems.
• Utilizes long-lasting and highly efficient LED packages for optimal performance and longevity.

Driver:

• The driver is securely fixed to the back or side of the panel to prevent damage during shipping and handling.

Optical System:

• The backlit optical system delivers a uniform and consistent light output.
• A diffuser lens is incorporated to minimize glare and enhance overall energy efficiency.

Dimming:

• Standard continuous 0-10V dimming capability allows for flexible light level adjustments.

Energy Efficiency:

• Offers over 50% energy savings compared to traditional fluorescent lighting fixtures.
• Low heat generation reduces maintenance and operational costs.

Certifications and Listings:

• ETL Listed
• FCC compliant
• RoHS compliant
• CE certified

Power and Lumen Output:

• Available in various wattage options: 15W (2025lm), 20W (2660lm), 25W (3250lm), 30W (3810lm), and 40W (5000lm).
• Lumen efficacy ranging from 125lm/W to 135lm/W.
• The measurement of the lumens is based on 5000K, 80 CRI. Actual lumens may vary.

Warranty:

• Backed by a 5-year limited warranty, rated for 50,000 hours. (Refer to warranty documentation for complete details).

Key Features:

• 5CCT selectable.
• Wattage selectable.
